| Type-EM7 |
|
|

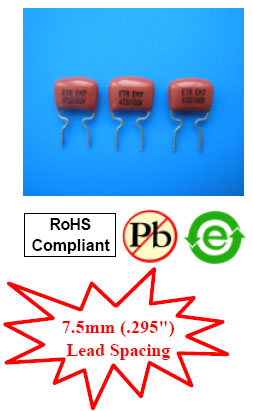

 THE Type-EM7 are constructed with metalized polyester film dielectric ,copper-ply wire leads and epoxy resin coating , in non-inductive type .
FEATURES:
■ 7.5mm (.295") lead spacing on all values.
■ Space-saving miniature size.
■ Self-healing property.
■ High moisture resistance , Good solder ability.
■ Available on tape and reel for automatic insertion.
APPLICATIONS:
They are ideal for blocking , coupling , decoupling , filtering , by-pass ,timing circuits and other general purpose usage.
SPECIFICATION:
1.Operating temperature : -40℃ ∼ +85℃
2.Capacitance range : .01μF ∼ 1.0μF
3.Capacitance tolerance : J=±5% , K=±10% , M=±20%
4.Rated voltage (RV) : 50 / 63 , 100 , 250 , 400VDC
5.Dissipation factor (DF) : 1.0% max (at 1KHz 25℃)
6.Testing voltage (TV) : 160% of RV for 60sec.
7.Insulation resistance (IR) : C≦.33μF and RV≦100vdc ,≧10,000MΩ (at 25℃)
Measured at : C＞.33μF and RV≦100vdc ,≧ 3,300MΩ.μF
a. 50vdc 60s if RV ＜100vdc C≦.33μF and RV＞100vdc ,≧30,000MΩ
b.100vdc 60s if RV ≧100vdc C＞.33μF and RV＞100vdc ,≧10,000MΩ.μF
 |
